Divine House

Springfield, Oregon 2021
Divine House. Gable end at night
1/31

AIA National Housing Award, 2022
Architect’s Newspaper Best of Design Award, 2021

The Divine House is located along the McKenzie River outside of Eugene, Oregon. Approximately 50 feet above the water level, the structure is sited on the northern, upper end of a sloping lot overlooking a dramatic bend in the river. The house has a simple rectangular footprint and a gable roof with deep overhangs. It is directly organized down the centerline of the plan below the ridge. The northern half contains the smaller, more cellular programs — the carport, the entry, the guest area, the bathroom, and the primary bedroom. The southern half is entirely open and includes the living and dining areas, the kitchen, and an adjoining covered deck. The width of the rooms and the generous depth of the overhangs was based on the maximum length of local Douglas fir structural members.

Divine House. Front facade at night
Divine House. Oblique axonometric
Divine House. Entry area

The spaces of the house are defined using a series of solid-reading volumes, which allow for multiple routes and notably free movement throughout the interior. Contained within this highly articulated poche are storage areas for clothing and household items, mechanical spaces, as well as the laundry area and bath. The positioning of these volumes reinforces the organization of the house along the ridgeline and establish the distinct spatial character of the two halves of the plan. Sightlines were developed to provide a range of views within and through the house and give an immediacy to the grounds and the river without undercutting desired privacy (to the extent that the interior doors are largely rendered redundant). Conceived as part of the main living room, an expansive hardwood deck extends out towards the river and will weather to a silver grey. The deck, which covers the same area as the interior of the house, works in tandem with the interior volumes to expand the field.

Divine House. Main space looking towards living area

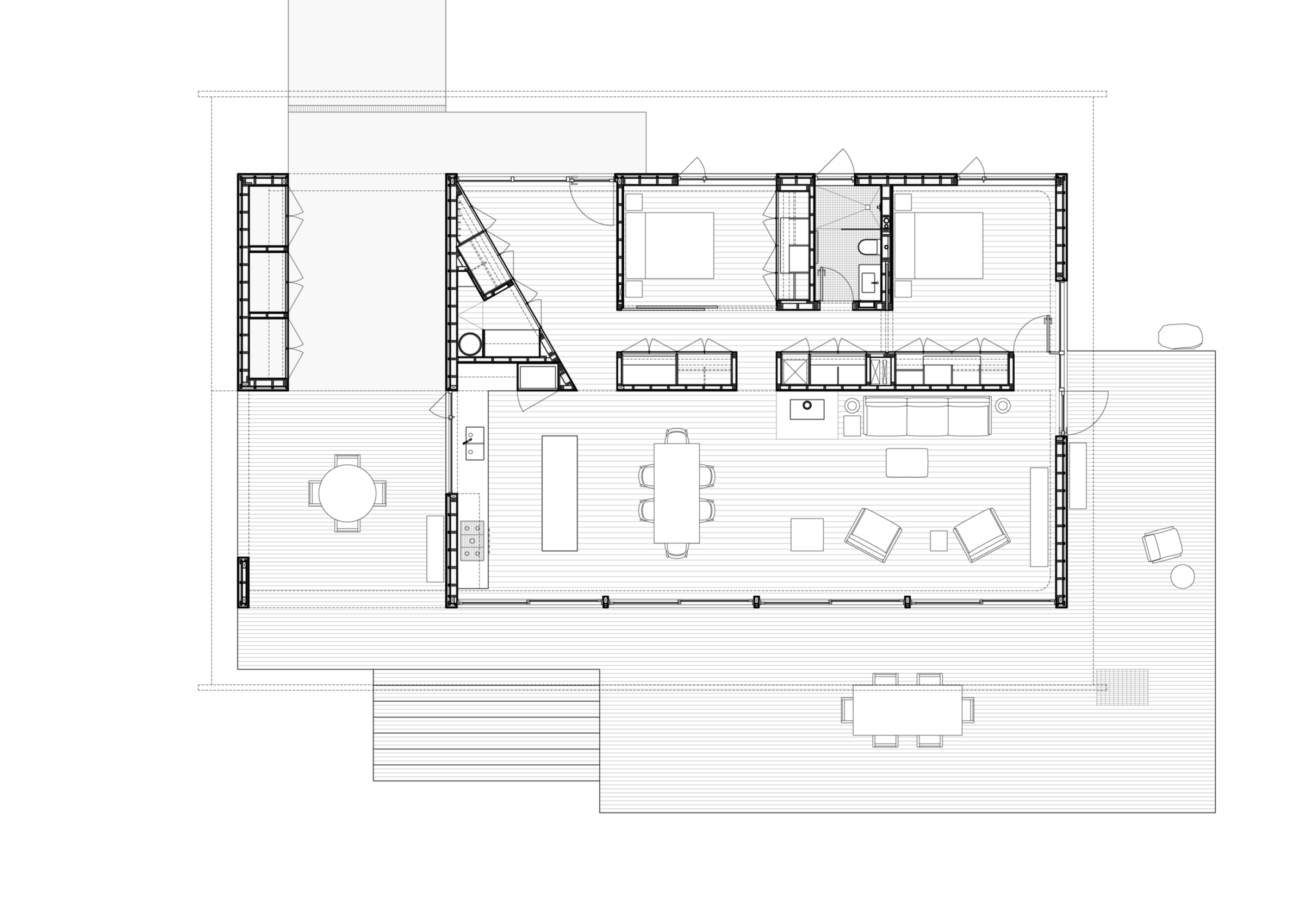

Divine House. Floor plan
Divine House. Main space looking towards kitchen and dining area
Divine House. Main space view to the McKenzie River

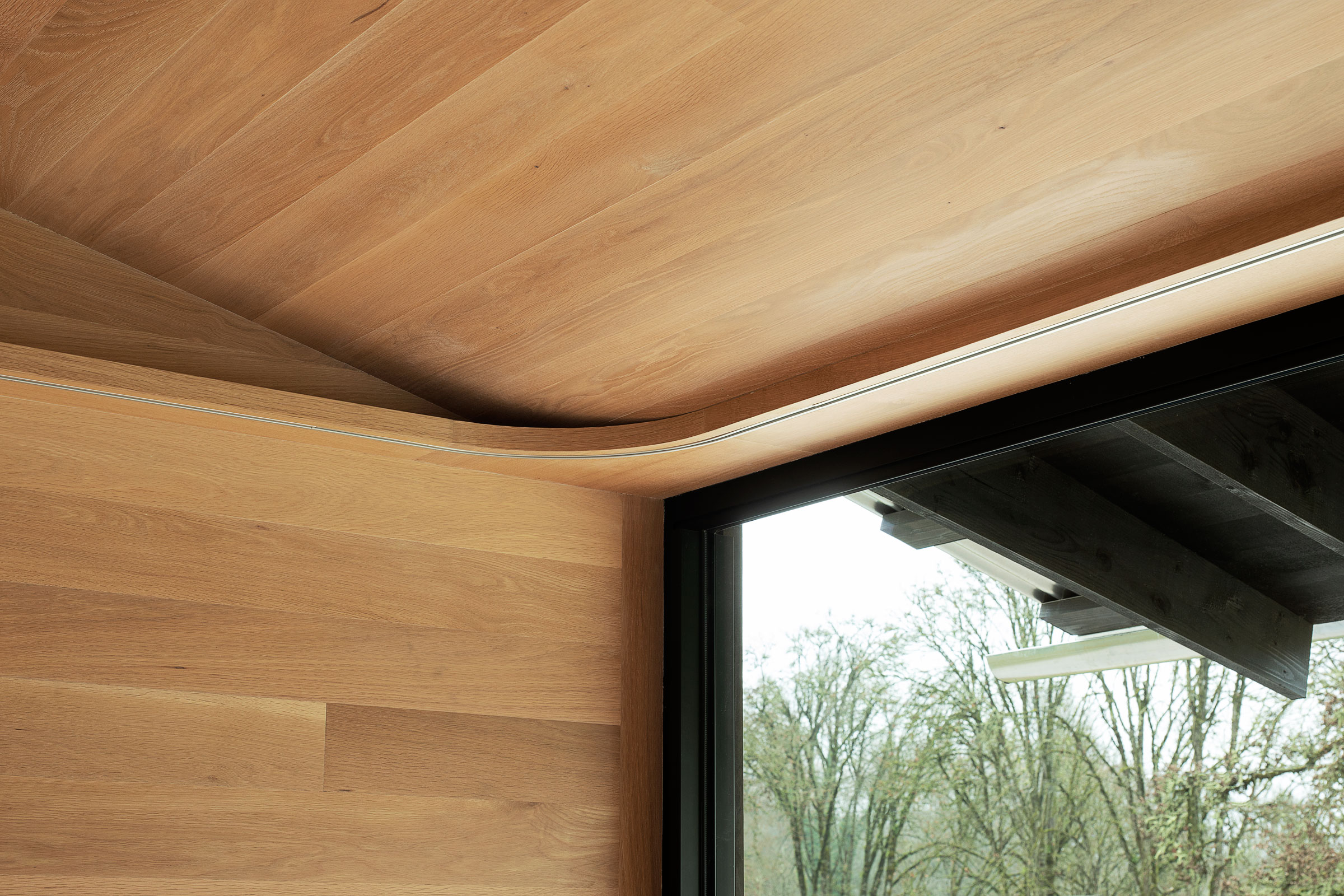

Divine House. Curtain track corner detail

The material palette and methods of construction are direct and robust. The most prominent feature — the roof — is raw corrugated aluminum which will oxidize and dull in appearance over time. It uses a concealed clip system installed over a grid of battens and counter battens, the latter of which also function as outriggers on the gable ends. The siding is 5” wide clear cedar planks, finished in black pine tar. They are furnished in full lengths and key precisely into the building geometry. Similar to the roof, the wall detail employs a fully vented assembly of battens and counter battens.

Divine House. Exploded structural isometric
Divine House. Primary bedroom view towards the deck
Divine House. Primary bedroom garden view

The interior also is constructed in a similar fashion and given a similar finished expression — in this case 5” wide plain sawn white oak boards, fully coordinated with the geometry throughout. The articulation (rather than the coloration) unifies the inside and the outside and de-emphasizes the applied nature of the finished surfaces. The interior ceilings are installed over a lowered array of joists in order to lend more intimacy to the spaces and conceal the beams below the roof ridge and at the headered openings along the North and South facades. The effect of suppressing the principal structure through this fur down focuses the view out towards the landscape and, in concert with the storage volumes, lends the interior a strong sculptural quality, all enveloped in a single material. A hardwax oil was selected for the finish to maintain the raw appearance of the white oak.

Divine House. Primary bedroom, all closet doors open
Divine House. Hallway and guest area
Divine House. View to the kitchen from the guest area

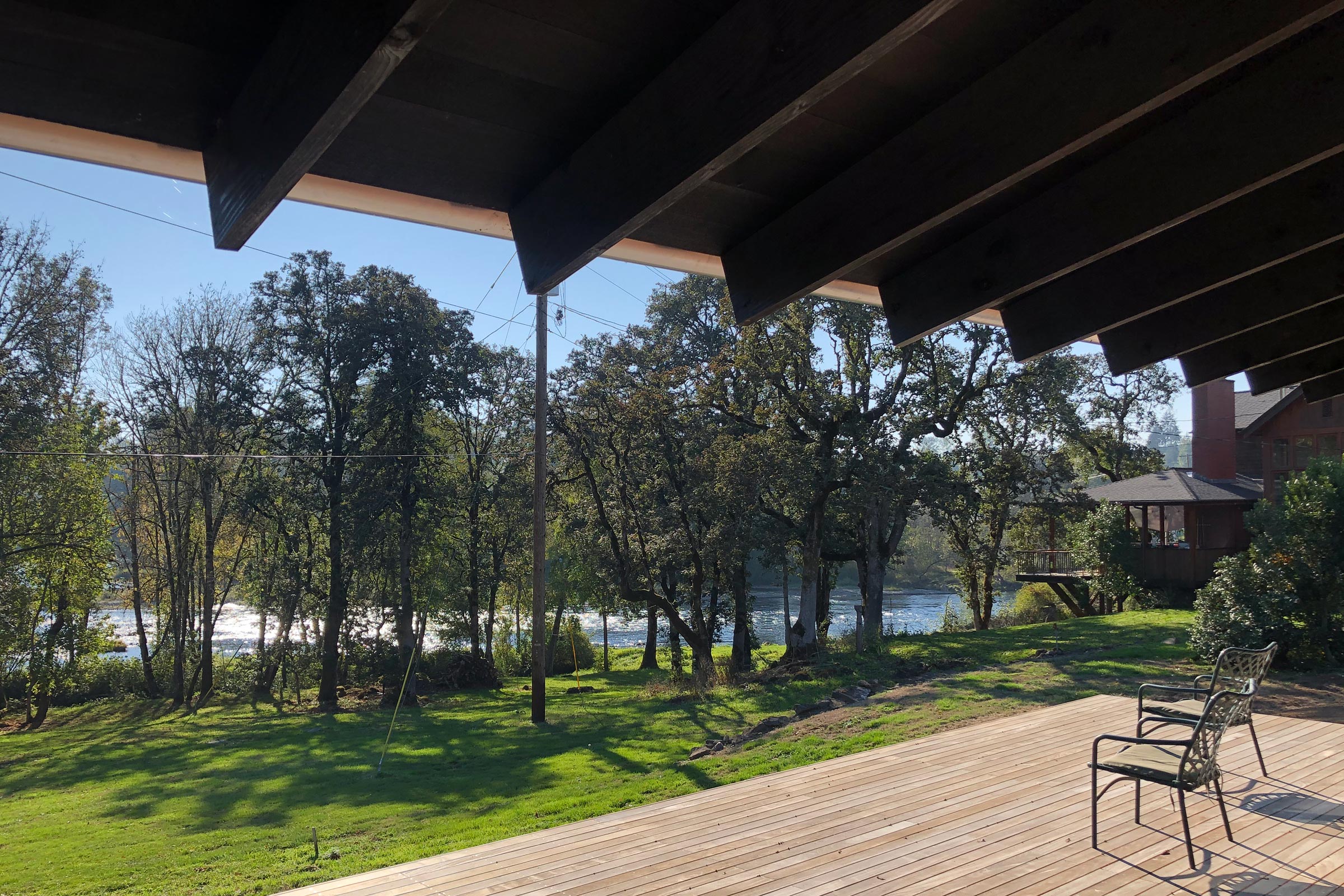

Divine House. Deck view towards the McKenzie River

Location: Eugene, Oregon
Completed: 2021
Client: Roscoe Divine
Design team: Landry Smith, Harrison Moser
Structural engineer: Munzing Structural Engineering
Lighting: Mariel Taviana Acevedo, Solus
Construction: Jay B Construction
Framing and finish carpentry: Green River Construction
Metalwork: Hanset Metal Fabricators
Program: single family house
Area: 1,550 sq ft
Photography: Jeremy Bittermann, Landry Smith
Awards: German Design Award, Nominee, 2023
AIA National Housing Award, 2022
Architizer A+ Award, Special Mention, 2022
Dezeen Award, Longlist, 2022
The Plan Award, Finalist, 2022
Architect’s Newspaper Best of Design Award, 2021

Divine House. Site plan
Divine House. Approach drive
